CINE-D INSTALLATION GUIDE


This guide will walk you through the installation of CINE-D on a Windows machine. Follow the steps carefully to ensure successful setup.

System Requirements:

Before installation, make sure your system meets the following requirements:

  • Operating System: Windows 10 or higher (64-bit)
  • Processor: Intel Core i5 or higher
  • RAM: Minimum 8GB
  • Storage: 500MB of free disk space
  • Graphics: DirectX 12 compatible GPU

Step 1: Download CINE-D exe file

1.   Visit the TriVice website https://trivice.net/download/

2.   Download the latest version of the TriVice Desktop Toolbar file (Example – Download 1.5.1) to your desired location on your computer.

Step 2: Install CINE-D

1.    Locate the downloaded CINE D exe file and double-click to run it.

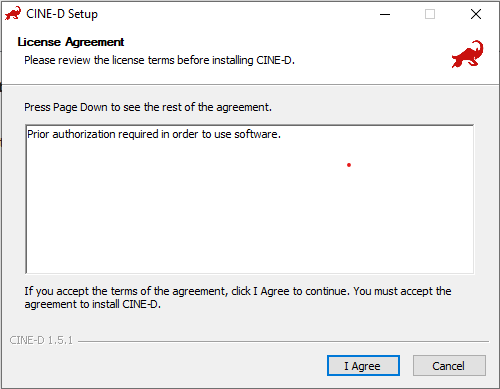

2.     Read and accept the License Agreement by clicking on I Agree.




 3. Select only current user when prompt to install for users. Click Next.

If installation is failed due to restricted access to install software, then uninstall the software and reinstall and select all users options.

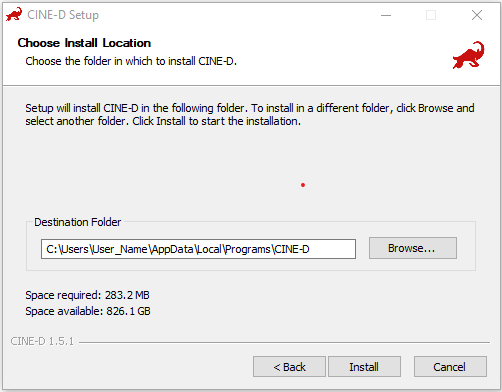

4. Choose the installation location or leave it as the default, then click Install to begin the installation         process.
Select default location

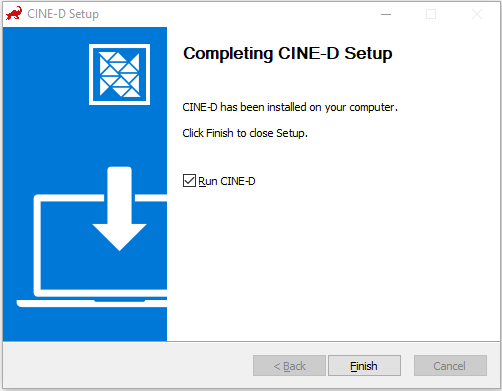

5. Once the installation is complete, click Finish to exit the setup wizard. You can now find the CINE-D application in your Start Menu or on your Desktop.



Step 3: Device Setup and Login

3.1. Device Setup (One-time Activity)

As part of the initial setup, device registration is required. Once completed, this step will not need to be repeated in future logins. Select from the options and click Continue. For example:

  • PMS: SystmOne
  • Environment: Live
  • Practice ODS Code: m85***

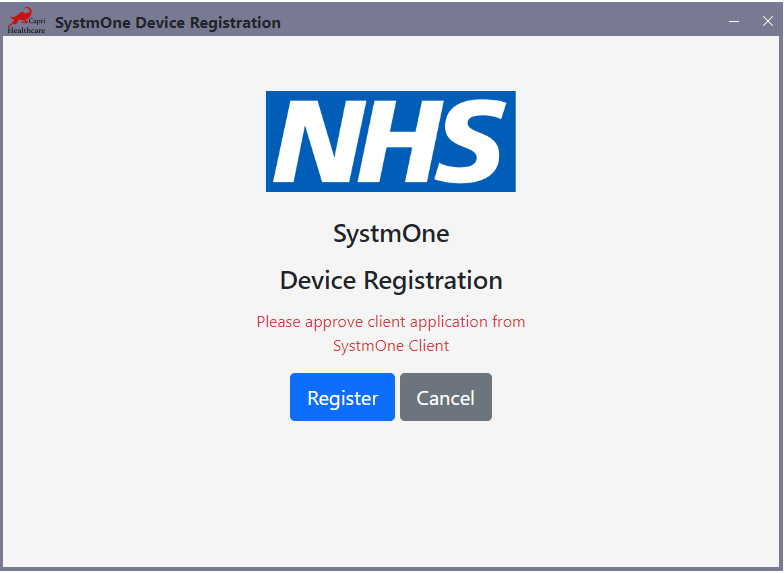

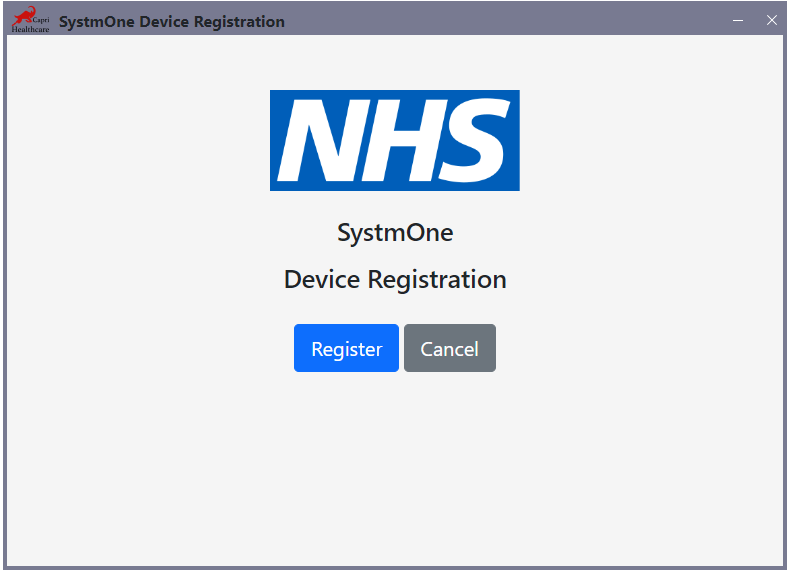

3.2. Register Device with SystmOne
Send a device registration request to SystmOne by clicking the "Register" button.
Ensure that SystmOne is logged in and active on the same computer.

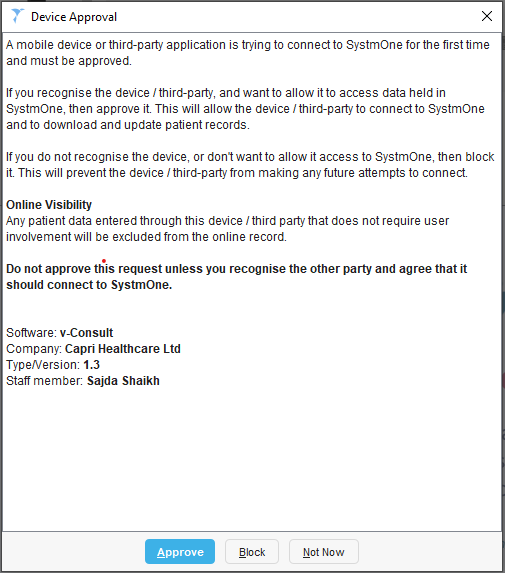

3.3. Approve Device Registration Request
Approve the device registration request within SystmOne.


3.4. Complete Registration
After approving the request, the following screen will appear.
Click Ok to complete the device setup.

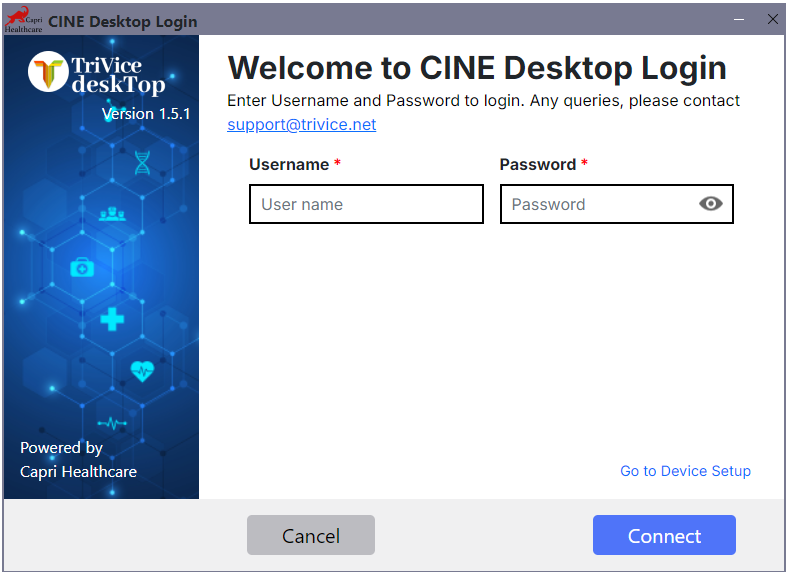

3.5. Login and Connect

Enter the common user credentials and click Connect. These credentials are used for both TriVice and v-Consult and have been created and configured in advance.



3.6. Software Ready for Use

After completing the steps, the software will be ready for use.


Step 4: Make a Referral

To refer a patient, first retrieve the patient details from SystmOne for whom you wish to make the referral. Then, click on the first icon (Refer a Patient) and follow the prompts to proceed with the referral process.



 Device Setup is only required once: The setup process in the document (steps 3.1 to 3.4) is only needed to be completed once. For all future logins, device setup will not be required. You will directly see the login screen (step 3.5), where you can enter your credentials and connect.              CINE-D Active State: CINE-D will remain active unless you explicitly log out of the application.

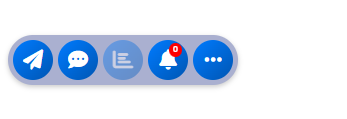

Toolbar Customization:

    • The toolbar can be expanded or collapsed as needed.
    • To expand or collapse the toolbar, click on the three dots (Menu) on the tool bar > click Collapse or Expand
    • If you close the toolbar, it will be hidden from view. To bring it back, simply click on the CINE-D application icon, and the toolbar will reappear.
    • Steps to close: Click on the three dots (Menu) on the tool bar > click Close.
